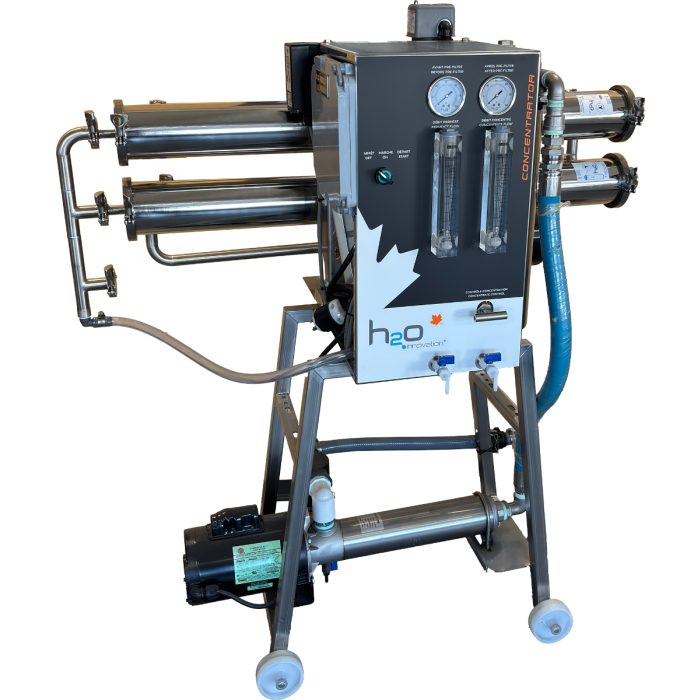

Concentrator 200 - 2 X 4" membranes

Compact. Powerful. Scalable. – The Redefined Concentrator

The Concentrator is a compact reverse osmosis system designed to process between 200 and 300 gallons of sap per hour, reaching up to 12 °Brix thanks to its independent recirculation pump. Fully reengineered, it delivers outstanding performance, energy efficiency, and long-term value for maple producers.

Built to maximize your investment, this unit offers:

• Low energy consumption
• A compact format ideal for small sugarhouses

Upgraded construction features include:

• Stainless steel membrane housings for enhanced durability
• Welded stainless steel piping for permeate and concentrate
• A simple, fast assembly for easier maintenance

Its modular design allows easy expansion as your needs grow—upgrade from 2 to 3 membranes when you're ready.

Technical Specifications:

• Flow rate: Up to 200 gallons per hour
• Two 4" membranes (expandable to 3)
• 1.5 HP pressure pump
• 0.5 HP recirculation pump
• 13 amps / 240 volts
• Dimensions: 30" × 52" × 52"
