Deluxe pan washer basin (85 US gal.) with 5HP pump, built-in filters, dual flue pan outlets with sequence timer (surface + deep CIP), dual syrup pan outlets – 66-1/4" x 28-1/2" frame on wheels.

In stock

SKU

PFH159004

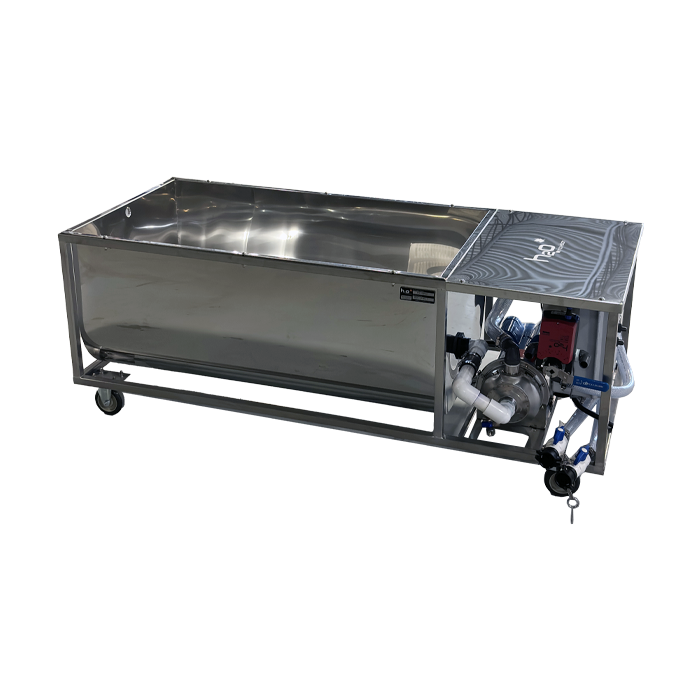

Deluxe Pan Washer Basin
This stainless steel pan washer basin is designed to efficiently supply spray systems for cleaning evaporator pans, serving as the central component of the CIP (Clean-In-Place) process.

Operation
The basin feeds the pan washers through a powerful 5 HP pump that pushes water to external spray systems (sold separately) installed directly on the pans. It includes a motorized valve that automatically alternates the flue pan cleaning sequence between internal spray fingers and top broadcast jets for deep and thorough cleaning. The entire process takes place without removing the pans, saving time and helping maintain a clean evaporator.

Connections:

Flue pan: Internal spray fingers + top broadcast jets
Flat pan: Top broadcast jets
(Spray systems sold separately)

Features:

85 US gallon stainless steel reservoir
Mobile frame: 66 ¼" x 28 ½"
5 HP pump included
Integrated filtration system
Motorized valve for automatic flue pan sequence control
2 flue pan outlets with programmable timer
2 flat pan outlets

Ideal for sugarmakers looking to automate and simplify cleaning while maximizing process efficiency.

Category : PAN WASHER BASES
